CAC-4221-2 - CAC42212 SEARS CRAFTSMAN AIR COMPRESSOR PRESSURE SWITCH

$29.95

144 in stock

SKU 291822732516 Category

Description

REPLACEMENT
PRESSURE SWITCH
95 PSI ON & 125 PSI OFF
SINGLE PORT
UNLOADER VALVE
ON/OFF METAL LEVER

The original switch is obsolete, this switch is the closest replacement for it.
This switch comes on many single stage air compressors.
Please review the specs to ensure proper fit.

This switch is the suitable replacement for the
Furnas Hubbell Model 69MB7LY.

CAP#1L-01FL

It is factory set at 95 PSI on and 125 PSI off and is adjustable.
Rated at 20 AMP, 120 volt.
This UR and CSA approved.

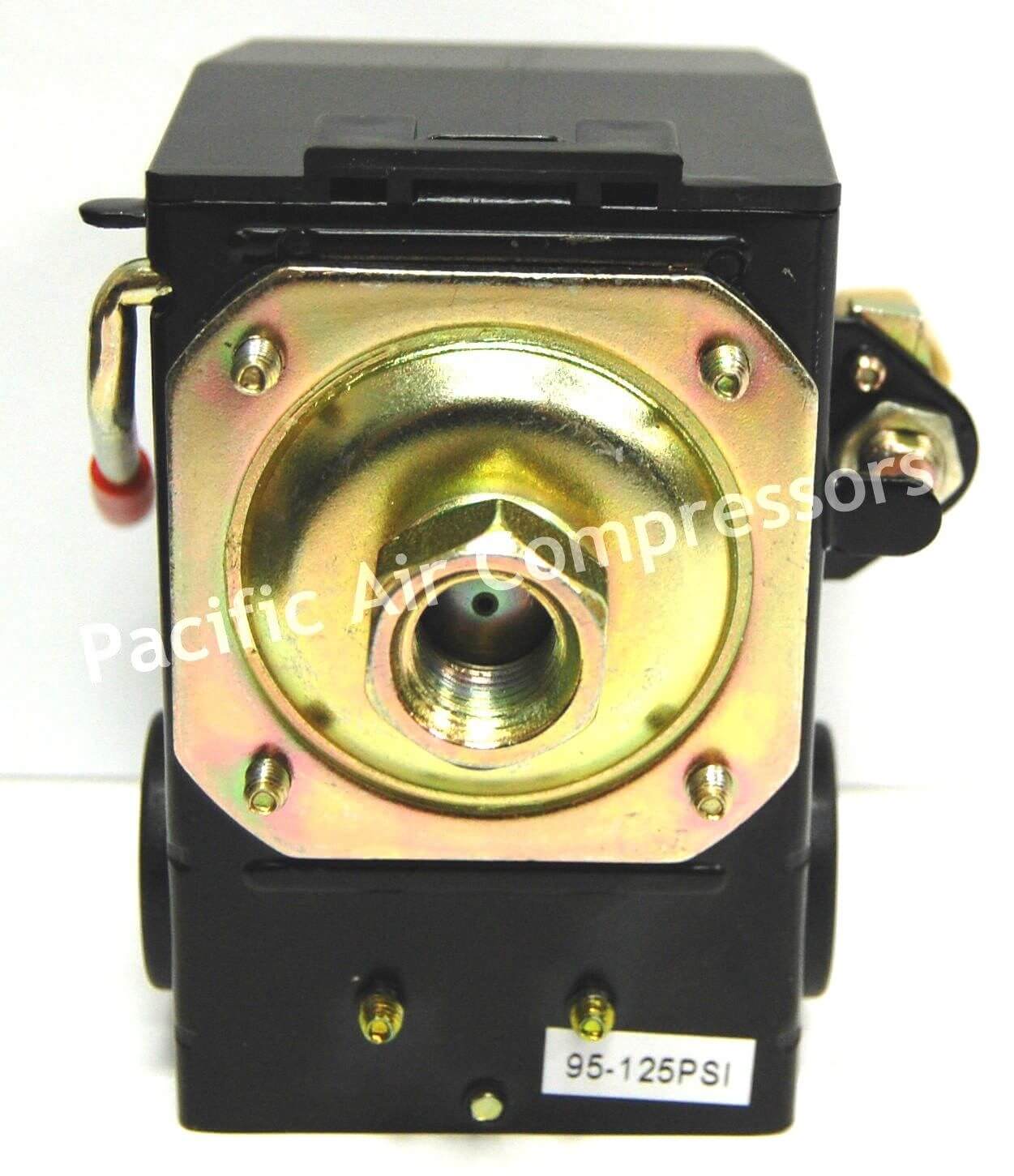

The bottom side has a single 1/4″ FPT port.

One side has a pressure release unloader valve for 1/4″ compression tube.

The other side has a metal on/off lever.

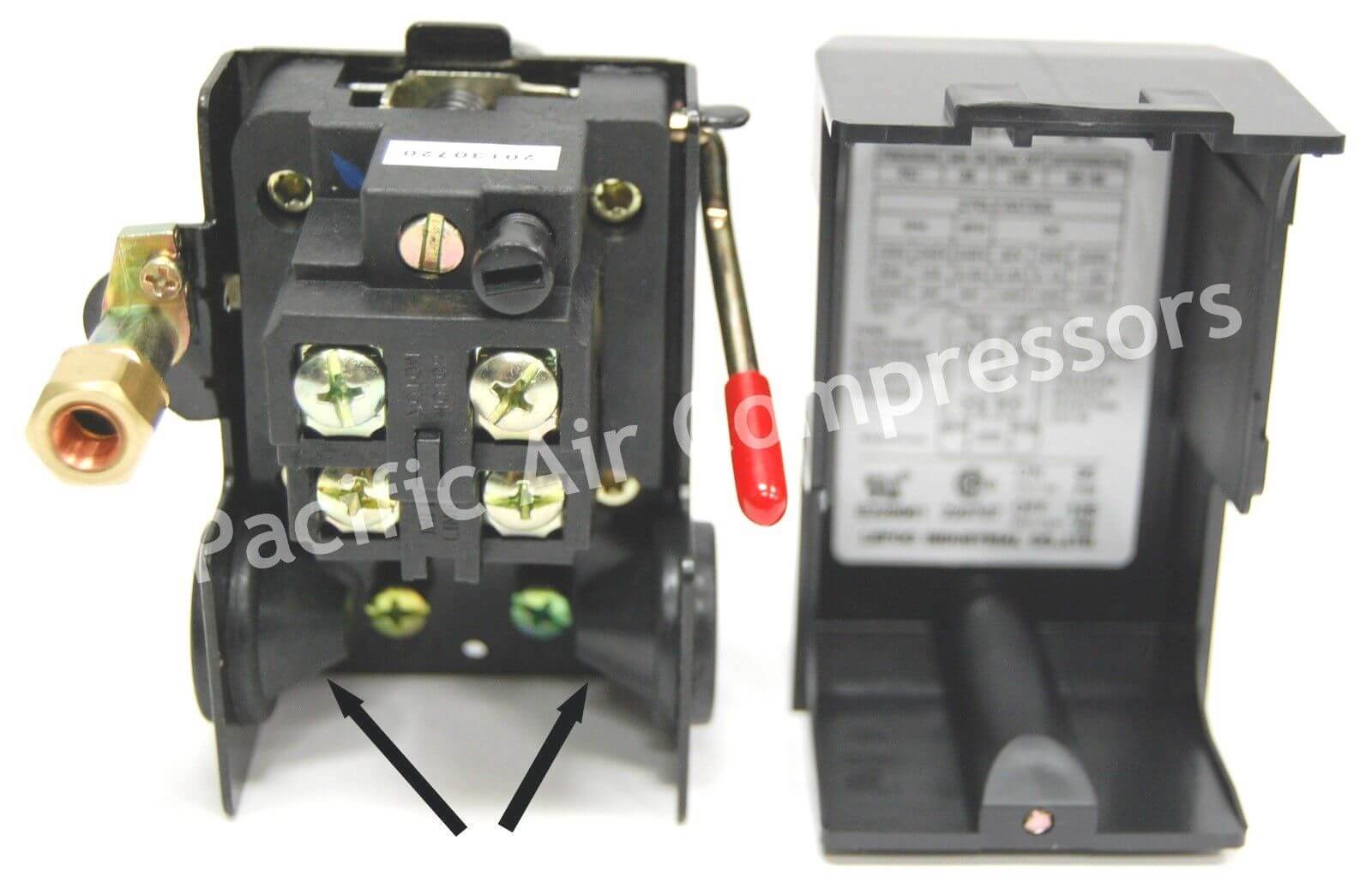

This switch has rubber strain reliefs (see above arrows).

Additional information

Weight 0.12 lbs
Brand

SEARS CRAFTSMAN

Model

919.176210, 919.176311, 919.176320, 919.176330

MPN

CAC-4221-2 – CAC42212

UPC

Does not apply
