TUNE UP KIT FOR CHAMPION R70A & R70AHU

CHAMPION

REBUILD / TUNE UP KIT

FOR PUMP MODELS
R70A & R70AHU

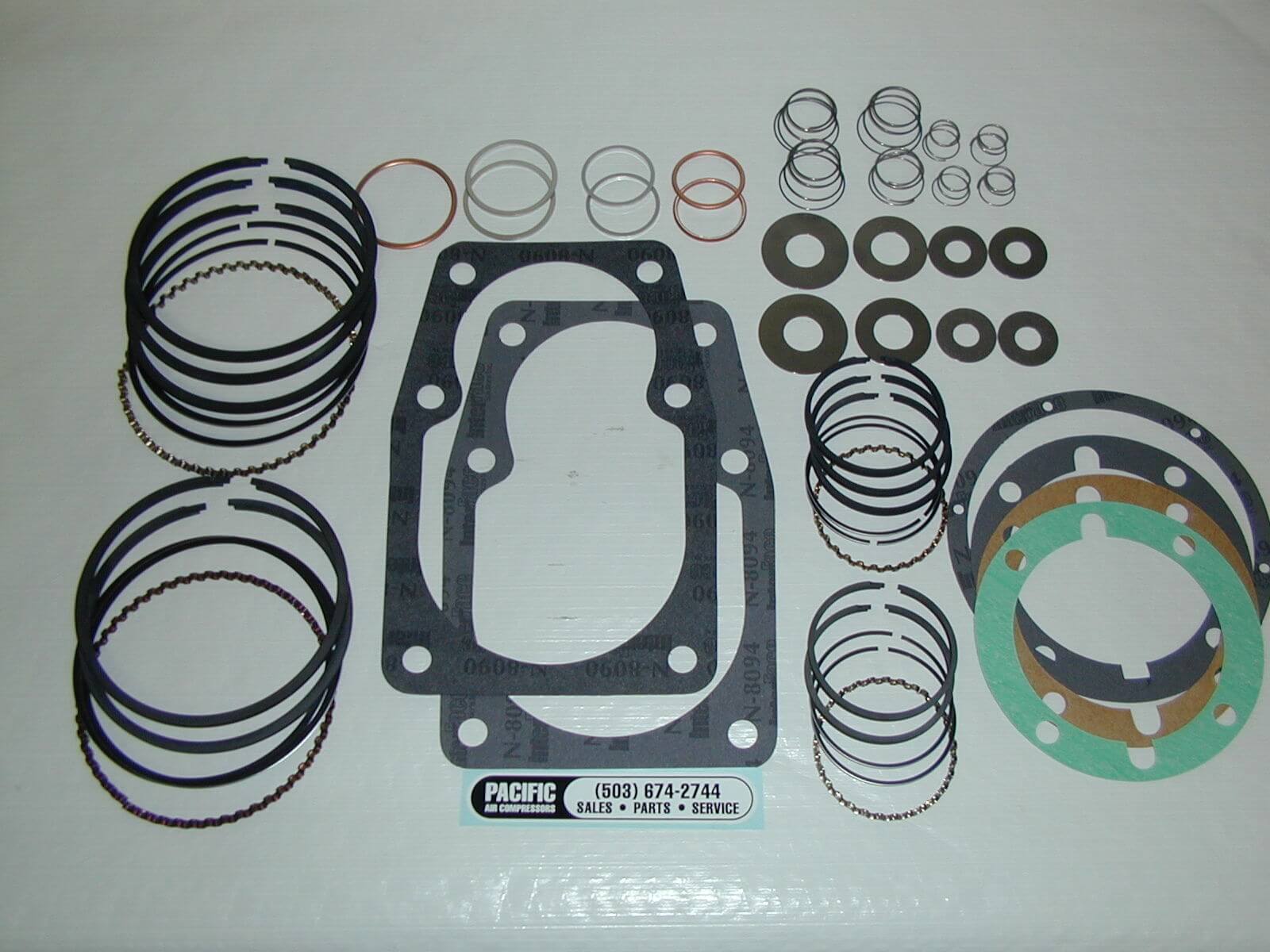

Please note the picture shown is a generic Champion kit.

PART:TUKR70CH
PAC: TUKR70CH

This kit comes with valve discs and springs for all intake and discharge valves. To simplify ordering parts for single machine repair, TUK’s have been assembled to include gasket kit, piston ring set, oil seal, wearing valve discs and springs to recondition one compressor.Includes parts:Low pressure piston ring set (refer to 45 in breakdown) # Z9087High pressure piston ring set (refer to 48 in breakdown) # Z9088Complete compressor pump gasket set (refer to 10, 14, & 49 in breakdown) # Z10889Complete compressor pump ring set (refer to 45 & 48) # Z9123Valve gasket kit (refer to 53 & 56 in breakdown) # Z615
