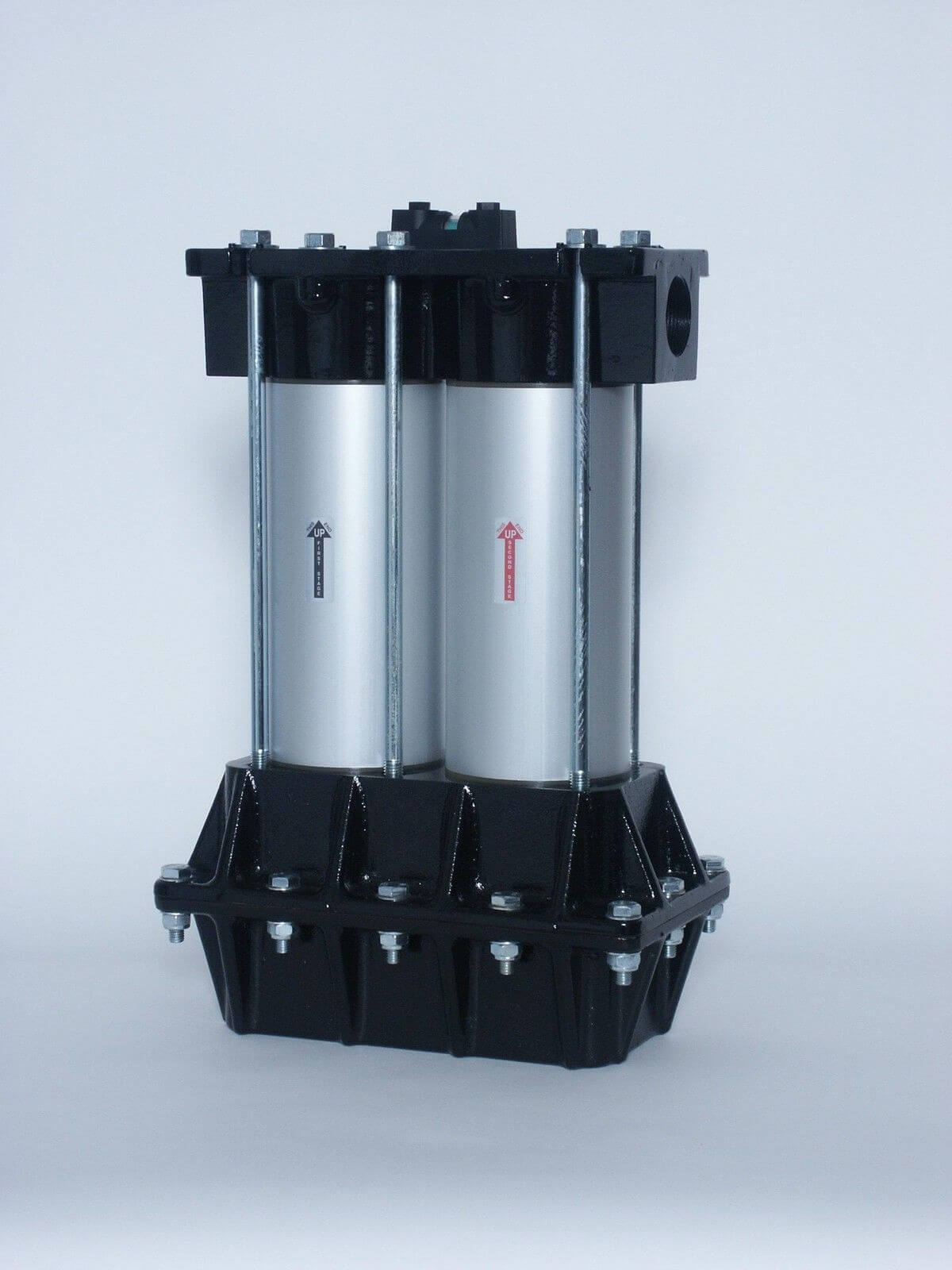

DIESEL PORTABLE AIR DRYER MODEL 140 XAS-185 ATLAS COPCO D185 SULLIVAN SULLAIR IR

$1,457.00

SKU 281112248073 Category

Description

EXTRACTOR / DRYER
MODEL
140
250 SCFM SIDE PORT

EXRACTOR/DRYER – HOW IT WORKS:

  • Compressed air containing tiny particles of dirt, dust, oil, rust and moisture enters the first stage of the La-Man® Extractor/Dryer Filter.

  • A coalescing effect occurs as air passes through a cartridge mesh filter, which captures larger particles and causes moisture to form larger droplets.

  • Air velocity lessens as it enters the extraction chamber allowing particles to collect and moisture to condense on the honeycomb.

  • Particle-laden liquid flows along the bottom and out the drain.

  • Air passes through the second stage wire supported fiber filter cartridge, which captures remaining particles down to 5 microns (smaller microns available).

  • Remaining moisture and contaminants are dried and filtered in the second stage filter.

  • Exhaust air is clean and dry – no dirt, rust, oil, or moisture or disrupt air equipment operation.
  • MODEL 140
    NPT 1-1/2″
    SCFM 250
    MAX PSI 250
    SERVICE KIT # 250SKA
    SIZE (INCHES) 20 x12-1/2 x 7-1/4
    APPROX WT. LBS 36
    PART#: 140

    The 140 Extractor/Dryer will work great on diesel portable air compressors. Diesel air compressors don’t have air cooled after cooler or filtration so they put out wet oily air. With the 140, two stage extractor the water and oil will be removed to supply better quality air for air tools, sand blasting, etc.

    EXTRACTOR/DRYER: The patented Extractor/Dryer is a two-stage, point-of-use compressed air filter. Designed primarily for the final usage of air, it will remove water, oil and other contaminates from compressed air lines. Developed for air driven tools, paint spraying, manufacturing equipment or any other compressed air equipment to produce clean, dry, compressed air. In return you receive extended equipment life, improved product quality, reduced downtime, and savings on costly repairs to damaged equipment. These advantages will pay for themselves in a short amount of time. APPLICATIONS:

    • Air Guns
    • Injection Molding
    • Hospital Equipment
    • Staple Guns
    • Printing Presses
    • Rivet Guns
    • Bakery Equipment
    • Textile Needles
    • Packaging Coding
    • Transit Systems
    • Air Operated Chucks
    • Auto Paint & Body Shops
    • Sandblasting
    • Air Doors
    • Air Brushes
    • Dental Equipment
    • Nailers
    • Brewery Bottling
    • Construction
    • Electronics

    Point-of-Use: The Model 140 takes a different approach to cleaning up contaminated compressed airlines. Our Extractor/Dryer provides the best service when it is located at the point-of-use in an application. This allows the air from the compressor to cool, thus condensing to liquid and enabling the Extractor/Dryer to do its job. The shortest distance from our filter to the point-of-use ensures cleaner air, therefore protecting valuable machinery and equipment.

    Additional information

    Weight 37 lbs
    Dimensions 18 × 12 × 8 in
    Model

    140

    Brand

    LA MAN

    MPN

    140

    UPC

    Does not apply
