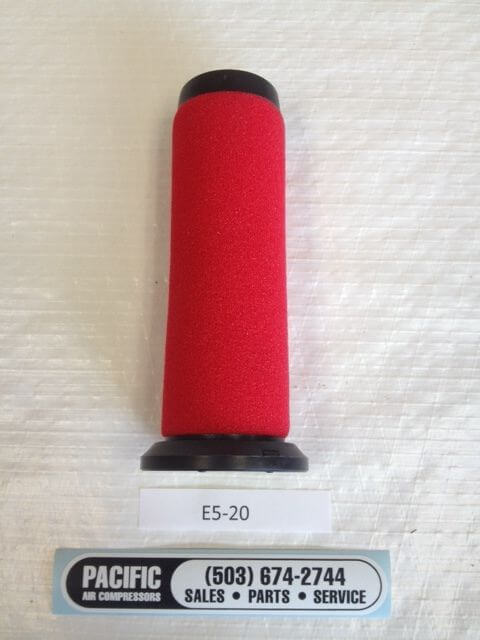

Description
HF Series Grade 5
Oil Removal Filter
Replacement Element
Grainger Part#: 4GER8
Parker Part#: 6CH10-060
Hankison Part#: E5-20
High Efficiency Oil Removal Filter
Fine coalescer for oil free air for industrial use, painting, injection molding, instruments and control valves.
For coalescing fine water and oil aerosols; removes solid particles to 0.01 micron (0.008 ppm w/w maximum remaining oil content)
Corrosion resistant inner and outer cores. Can be used for upstream of desiccant or membrane dryers; use a Grade 7 as a prefilter if heavy liquid loads are present. Downstream of refrigerated dryers.
Two-Stage Filtration First-Stage – multiple layers of fiber media and media screen remove larger particles, prefiltering the air for the second stage
Second-Stage – multiple layers of bonded, blended fiber media for fine coalescence
Outer coated, closed cell foam sleeve
We Carry Replacement Elements For All Filter Brands Coalescing, Paticulate & Oil Removal:
Hankison, Arrow Pneumatic, Domnick Hunter, Compair, Deltech, Donaldson, Ultra Filter, Finite, Gardner Denver, Great Lakes, Hiross, Ingersoll-Rand, Kaeser, Numatics, Pall, Pioneer, Parker, Pneumatech, Sullair, Palatek, Ultra Air, Van Air, Watts, Wilkerson, Zander, Zeks, Zern
Need A Quote On A Replacement Element? Give Us A Call!
