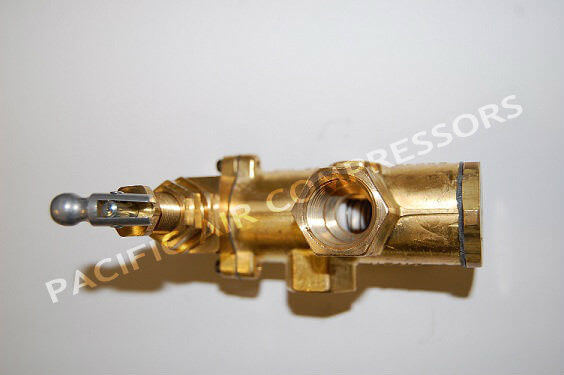

ST128400AV 1/2" X 1/2" CAMPBELL HAUSFELD UNLOADER VALVE AIR COMPRESSOR PART

$89.00

SKU 271296017893 Category

Description

CAMPBELL HAUSFELD
REPAIR PARTSCHECK VALVE

CAMPBELL HAUSFELD PART# ST128400AV
PAC# LGM20T

Features:

  • Application: self contained unloading valve can be used wherever a continuous run air compressor is required.
  • Combines all components required for continuous run compressors: pilot valve, vent valve, & check valve.
  • Eliminates the need for built in head unloaders
  • Easy installation: install the Mark III into the receiver and attach the compressor discharge line to the valve inlet.
  • Construction: forged brass body, zinc plated steel internal components fluorocarbon piston ring, stainless steel springs and a glass filled fluoropolymer check valve poppet.
  • Tapped & plugged 1/8″ port for throttle control of a gas engine
  • 1/8 NPT tapped port for pressure switch unloader valve and vent port muffler.
  • A toggle unloading lever for one hand warm up control.
  • Suitable for compressor up to 20 SCFM.

Specs:

  • 1/2″ X 1/2″
  • 95-125 PSI
  • Minimum cut-in: 60 PSI
  • Maximum cut-out: 250 PSI

Additional information

Weight 2 lbs
Brand

CAMPBELL HAUSFELD

MPN

ST128400AV

UPC

Does not apply
